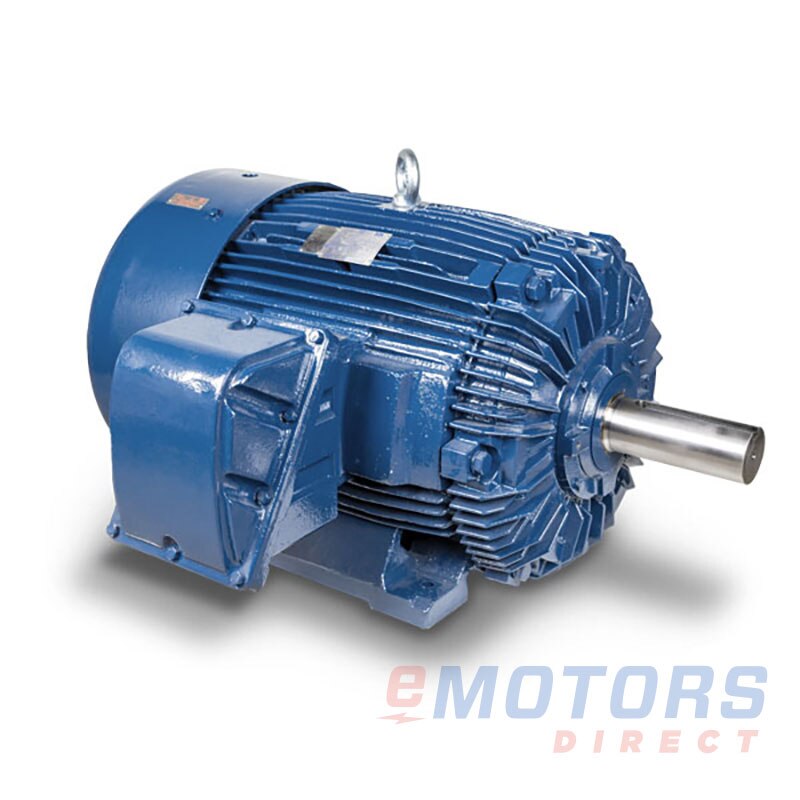

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

TECO Westinghouse XH01085

TECO Westinghouse
10 HP 900 RPM 575 V 284T TEFC-XP Explosion Proof Motors for Hazardous Locations
Catalog Number: XH01085
HP
10
RPM
900
Voltage
575V
Frame
284T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
900 RPM
Rated Motor Voltage
575V
Rated Motor Current
11.39 AMP
Phase
3
Poles
8
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
89.5
Nominal Power Factor
73.5
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
284T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
488lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
26.8"
NEMA Design
C
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1/F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6311ZZ
NDE Bearing
6310ZZ
Shaft Diameter
1.875"
Shaft Length
4.5"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
T3B
Temp Code (VFD Power)
T3B
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
